Hydraulic Power Unit Dock Leveler Hydraulic High Pressure Gear Pump AC380V 0.75KW Motor 2.1cc/R-

Hydraulic Power Unit Dock Leveler Hydraulic High Pressure Gear Pump AC380V 0.75KW Motor 2.1cc/R-
Hydraulic Power Unit Dock Leveler Hydraulic High Pressure Gear Pump AC380V 0.75KW Motor 2.1cc/R- Hydraulic Power Unit Dock Leveler Hydraulic High Pressure Gear Pump AC380V 0.75KW Motor 2.1cc/R- Hydraulic Power Unit Dock Leveler Hydraulic High Pressure Gear Pump AC380V 0.75KW Motor 2.1cc/R- Hydraulic Power Unit Dock Leveler Hydraulic High Pressure Gear Pump AC380V 0.75KW Motor 2.1cc/R- Hydraulic Power Unit Dock Leveler Hydraulic High Pressure Gear Pump AC380V 0.75KW Motor 2.1cc/R- Hydraulic Power Unit Dock Leveler Hydraulic High Pressure Gear Pump AC380V 0.75KW Motor 2.1cc/R- Hydraulic Power Unit Dock Leveler Hydraulic High Pressure Gear Pump AC380V 0.75KW Motor 2.1cc/R- Hydraulic Power Unit Dock Leveler Hydraulic High Pressure Gear Pump AC380V 0.75KW Motor 2.1cc/R- Hydraulic Power Unit Dock Leveler Hydraulic High Pressure Gear Pump AC380V 0.75KW Motor 2.1cc/R- Hydraulic Power Unit Dock Leveler Hydraulic High Pressure Gear Pump AC380V 0.75KW Motor 2.1cc/R- Hydraulic Power Unit Dock Leveler Hydraulic High Pressure Gear Pump AC380V 0.75KW Motor 2.1cc/R- Hydraulic Power Unit Dock Leveler Hydraulic High Pressure Gear Pump AC380V 0.75KW Motor 2.1cc/R-
Basisinformatie
Plaats van herkomst: Ningbo China
Merknaam: TianDi
Certificering: CE,ISO
Modelnummer: TDDL-AC-0075
Min. bestelaantal: 20 -stcs
Prijs: negotiable
Verpakking Details: Verpakt in kartonnen dozen, en dan op houten pallets.
Levertijd: 15 werkdagen
Betalingscondities: T/T, Western Union, L/C
Levering vermogen: 2000 stcs per maand
Beste prijs Contact nu
Motor: Wisselstroom 380 V 0,75 kW Tank: 6l
Pomp: 2.1cc/r Oliepoort: M14x1.5
Klepspanning: AC220V Montagetype: horizontaal
Markeren:

Hydraulic power unit with AC380V motor

,

Dock leveler hydraulic gear pump

,

High pressure hydraulic pump 2.1cc/R

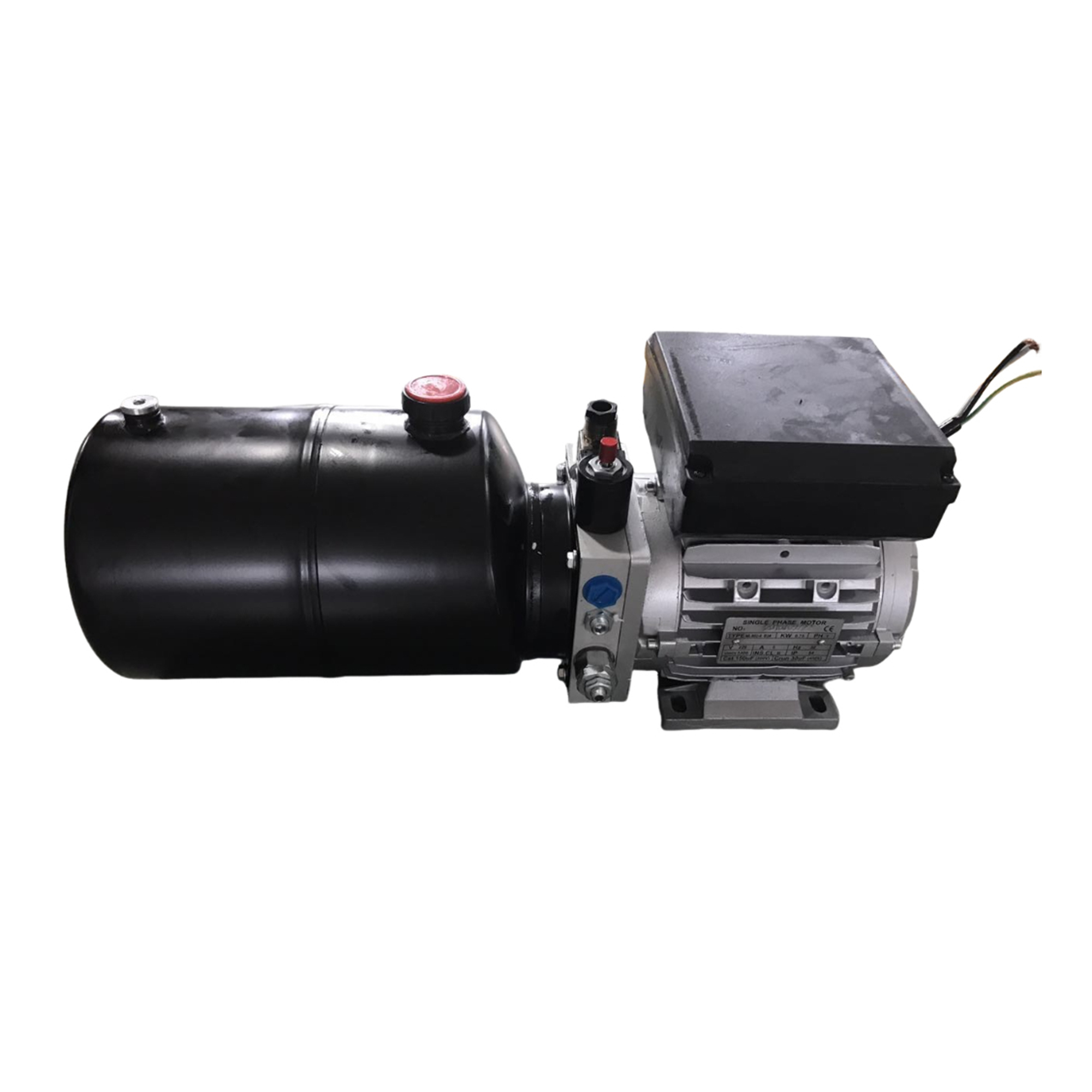

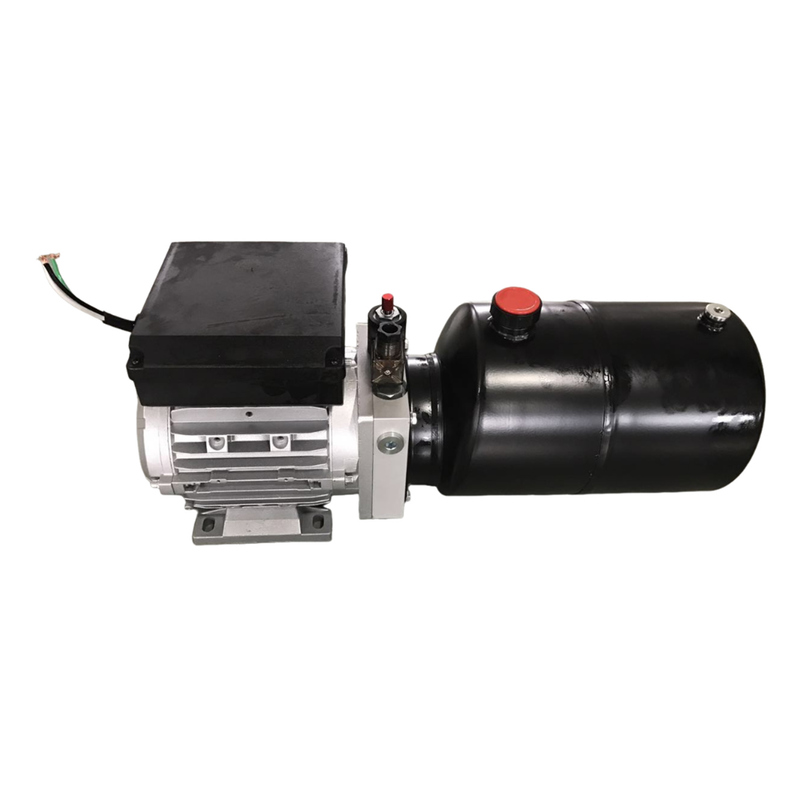

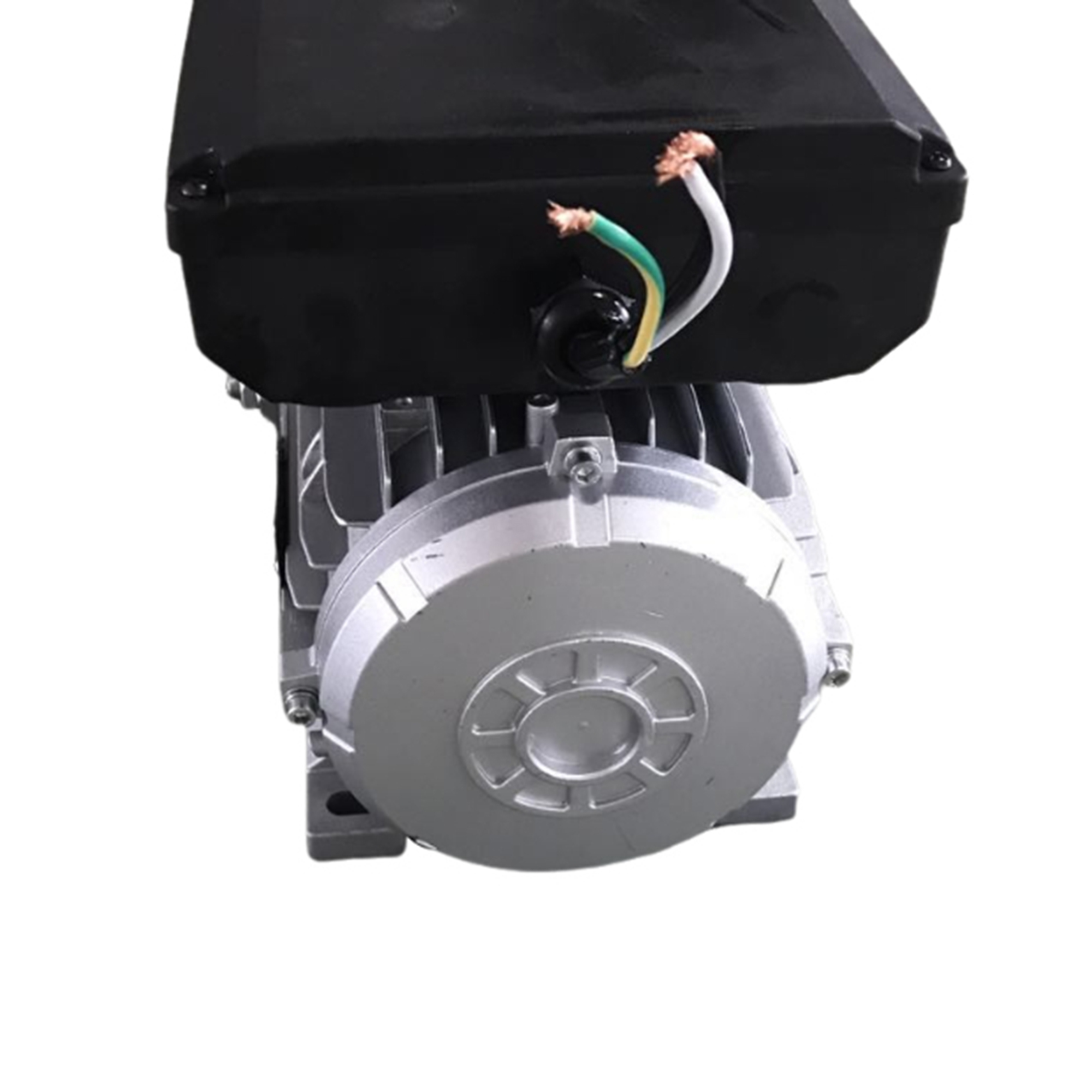

Hydraulic Power Unit Dock Leveler Hydraulic High Pressure Gear Pump AC380V 0.75KW Motor 2.1cc/R-
AC380V 0.75KW motor 2.1cc/r gear pump with 6L steel tank Hydraulic Power Unit
Basic Specification
Motor AC380V 750W 1450RPM
Oil Pump 2.1cc/r
Oil Port M14X1.5
Tank Size 6L
Valve Voltage AC220V
Mounting Type Horizontal
Commercial Terms
Minimum Order Quantity: 50pcs
Price: USD198/set
Payment Terms: T/T
Supply Ability 2800 pcs per month
Delivery Time: 25 working days after advance payment received
Packaging Details: Packed in carton boxes, and then wooden pallets
Drawing
Hydraulic Power Unit Dock Leveler Hydraulic High Pressure Gear Pump AC380V 0.75KW Motor 2.1cc/R- 0
Description
  • Components: This power pack is powered up and down. It consists of a high pressure gear pump, an AC motor, an aluminum center manifold, valves and a hydraulic oil tank.
  • How to Work: Push "up" button to start the motor to lift the Trailer, and the solenoid release valve activates the lowering movement.
  • Applications: It is specially designed and widely used in dock leveler applications.
